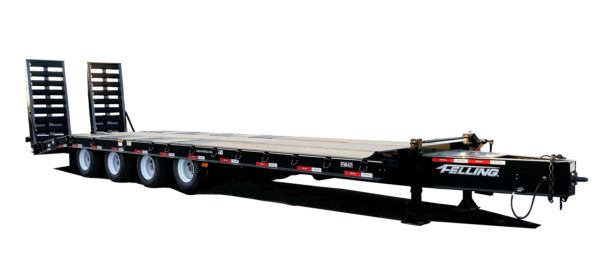

Felling FT-60-4 LP HD 230527NTU FT-60-4 LP HD with optional 7’ x 38” air ramps and air ride 1st axle.

Hauling Solution for wide undercarriage construction equipment, Felling’s LP HD Tags

Felling Trailers

1525 Main Street South
Sauk Centre, MN 56378
Phone: 866 213-2946
Fax: 320 352-5230

Contact Us

Felling Trailers, Inc. adds the Low Pro Heavy Duty (LP HD) models to its deck-over tagline. Wideset heavy construction equipment like mid-size crawler excavators and dozers can be challenging for any seasoned equipment hauler. The equipment is typically oversized, particularly heavy, and unique in shape (length, height, and width). The LP HD has been designed and engineered for transporting heavy (near 50-60K load capacities) wideset loads, like excavators, dozers, and other construction equipment.

Nathan Uphus headshot

Nathan Uphus

“As equipment continues to get bigger and wider, how weight is distributed can make or break a trailer. Our LP HD series tag has been designed and engineered to accommodate equipment that has an 8’-8.5’ wide track gauge (center to center of tracks), which will concentrate the machine’s weight directly over the side rails, typically 10’+ overall width machines (some examples: Deere 200/210, CAT 320/323, Komatsu PC210). This has been accomplished along with incorporating the standard features an operator wants and needs,” said Felling’s Sales Manager Nathan Uphus.

The LP HD series currently consists of two models; the FT-50-3 LP HD triple axle 25-ton and the FT-60-4 LP HD quad axle 30-ton (4 axle legality varies by state/providence). The available deck lengths for the triple axle are 24’, 26’, 28’, and 30’. The available deck lengths for the quad-axle are 28’, 30’, and 32’.

The Low Pro Heavy Duty (LP HD) series is constructed with a 10” structural channel full-length side rail (flanges out), Jr. I-Beam cross members 12” on center pierced through the heavy-duty, engineered, and fabricated 16” tall mainframe beams, and is standard with 1-3/8″ apitong decking. The LP HD design was driven by the needs of wide-set heavy loads, with the flange-out side rail construction it allows for optional outriggers to provide additional support and load distribution. Apitong decking is an extremely durable wood, making it ideal for construction equipment applications. The LP HDs are standard with a 6’ long double incline beavertail providing 12-degree and 6-degree load angles, respectively. The double incline feature eliminates the sharp break-over point, which substantially helps load/unload tracked equipment safely. The 6′ double incline beavertail is constructed with 5″ x 3″ self-cleaning angles. The 6′ x 20″ ramps, like the beavertail, are built with a 5″ x 3″ self-cleaning angle, spring-assist construction, or optional air ramp configurations depending on the equipment/operator’s needs.

Low Pro Heavy Duty Standard Specifications (triple & quad axle)

  • 16” tall, fabricated Grade 80 main frame beams (stepped down in trunnion area)
  • .5” thick main frame beam flange material
  • 6” high tensile Jr I-beams Grade 80, spaced 12” on center
  • 10” channel side rail (full length) rails turned out
  • Standard 1 3/8” thick apitong decking (white oak optional)
  • Standard 1” bent D-Rings – 16 on Triple, 20 on quad axle
  • 235/75R17.5 J Tires and 25K heavy duty 3 leaf spring suspension
  • 6’ Double incline beavertail with 6’ x 20” spring assist ramps (self-cleaning or wood inlaid)
  • Optional 38” wide x 7’ long air-powered ramps (self-cleaning or wood inlaid)
