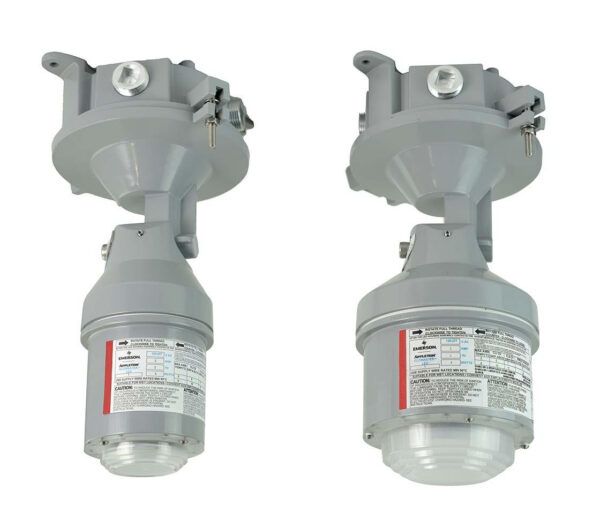

Versatile Appleton™ Glomaster™ LED fixtures streamline set-up with field selectable lumen output and CRT levels for safer, more productive work environments
Positioning itself as the innovation leader in the explosion-proof lighting market, Emerson has introduced the world’s first hazardous location Jelly Jar vapor tight luminaire to feature field-selectable lumen output and Correlated Color Temperatures (CCT) settings: the Appleton Glomaster™ LED Series.
Depending on the model, Appleton Glomaster LED luminaires are available with either 1000/2000 nominal lumens or 3500/5000 nominal lumens and come paired with a choice of 3000K/4000K/5000K CCT. Changing lumen output and CCT settings in the field only takes a few seconds, significantly reducing installation costs while helping users achieve optimal lighting for safety and productivity. High precision optics, including 360° uplighting, ensure adequate light levels in stairwells, docks, walkways, exits, and emergency call stations, among other close proximity areas.
Alongside the flexibility of field-selectable controls, Appleton Glomaster LED luminaires offer the versatility to be pendant, wall, or ceiling mounted, or on virtually any flat surface. An adjustable knuckle lets users rotate it from 0° to 90° in precise 10° increments, regardless of mounting orientation to accommodate site requirements.
Appleton Glomaster LED luminaires can be further customized by optional accessories. Colored globes are available to indicate critical areas, such as eyewash stations, together with stainless steel globe guards, and visors to reduce glare.
Rugged and Reliable
Appleton Glomaster LED luminaires are ruggedly built to endure prolonged exposure to extremely harsh environments, indoors or outdoors. Salt spray, high-pressure water jets, corrosive chemicals, and ambient temperatures from -40° F to 131° F are no match to the luminaire’s cast copper-free aluminum construction, silicone rubber gaskets, stainless steel hardware, polycarbonate globe, and gray epoxy powder coat paint finish. Integrated 6KV surge protection safeguards the luminaires against the most prevalent types of power quality issues found in many industrial facilities.
Thanks to their industrial-grade design the luminaires boast a service life of over 100,000 hours or twice that of competitive models. Once the fixture portion is at the end of its life it is user-replaceable.
Energy Efficiency
Appleton Glomaster LED luminaires were introduced as part of Emerson’s mission to advance sustainability, serving as energy-efficient substitutes for CFL, HID or incandescent lights. Compared with these sources, Appleton Glomaster LED luminaires consume 75% less energy and require far less maintenance.
Certified for Hazardous Locations
The Appleton Glomaster LED Series is certified for NEC Class I, Div 2, and Class II locations where flammable liquids, gases or dust may be present, such as petrochemical plants, wastewater centers, and underground mining. Additionally, the Appleton Glomaster LED is IP66 waterproof and rated for NEMA 4X wet environments including marinas.
