New Free-standing Bridge Crane kits from Air Technical Industries
Overhead workstation cranes offer great value, quick and easy assembly

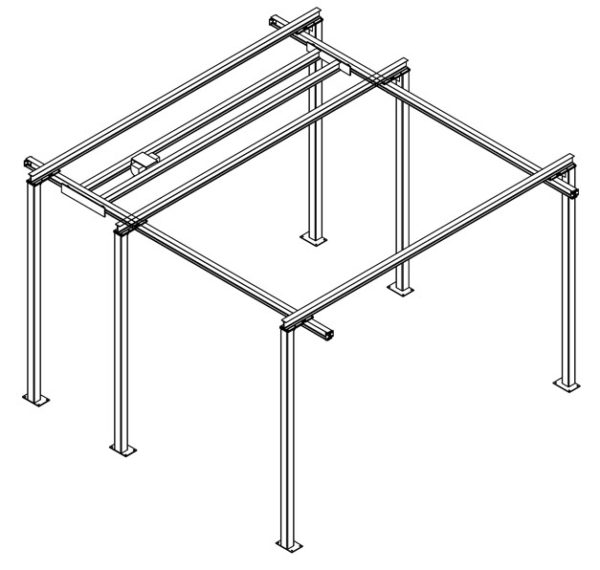

Air Technical Industries announces the development of a comprehensive series of free-standing workstation bridge cranes. These cranes empower workers with dedicated X-Y-Z movement in any work cell or department. They are offered in do-it-yourself kits or turnkey installation is available.
For most common, economical applications, a simple monorail design is offered. However, the differentiating factor for ATI designs is the unique, low-profile bridge. This double-girder design carries the hoist inside the bridge between the beams so that only the hook hangs below the bridge allowing for low headroom clearance and maximum utility.
The double girder bridge comes fully assembled, electrically wired, and tested, all you need is the electric or pneumatic power source. The new design of the double girder with a hoist built-in offers great benefits with low headroom and greater working height.
The self-supporting feature is an ideal solution in a rented building. When you move, take it with you. It requires no modifications to the building structure and can be installed independent of any existing structural supports. Another great feature is that the crane can be used indoors and moved outdoors if necessary.
The bridge span is available in a variety of widths to suit. The runway is also available in any length to meet the user’s requirements. The bridge and hoist travel can be manually operated for smaller capacities and can be upgraded to motorized bridge and trolley travel.
Capacities available are 500, 1000, 2000, 4000, 6000 and 10,000 pounds. Power is 120VAC single-phase for lighter capacities or 240-480VAC 3-phase for larger, heavier capacities. Pneumatic compressed air operation is also available. The standard control pendant is wired and can be upgraded to wireless radio controls. Customization is offered for special environmental considerations, for example, hazardous areas, clean rooms, food processing, etc.
Free-standing bridge cranes can be installed quickly and removed if you are moving or need it in a different location. These new cranes are an ideal, simple, and economic solution for many lifting, handling, assembly, and work positioning operations.
