Multi-Conveyor creates incline slider-bed trough conveyor
Multi-Conveyor just recently built a stainless steel constructed cleated incline trough-style belt conveyor designed to transport product waste to a customer supplied hopper.
The 24 inch wide belts feature 2 inch high flights every 8 inches that capture and incline the debris up to 50” on the incline. The product releases through a series of discharge chutes – one initial chute and a requested secondary chute.

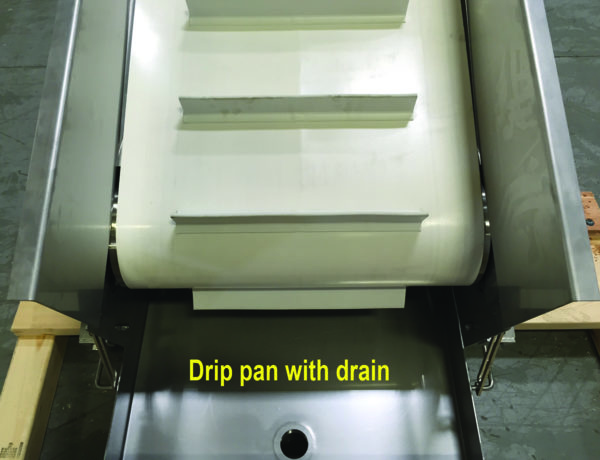

Additional safety includes reducer drip pans to catch foreign product from contaminating the floor. Overlapped pans are hooked on for easy removal and cleaning, with a separate drip pan placed at the base.
Simple hand valves control the CIP (clean-in-place) spray system. Wash down duty motor and reducers, high-grade stainless steel and corrosion-resistant inserts, and appropriate guarding built-in.
Facilitating expedient, operator safe handling of product waste was key to this project, however, the cleated incline conveyor design is used in many industries for a variety of applications.
