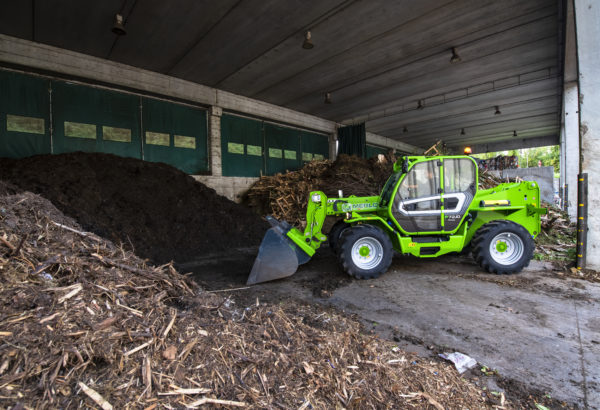

Merlo P72.10Plus. The sweet spot in telehandlers

Merlo’s Heavy-Duty range of telehandlers, which includes the P72.10PLUS, is engineered to meet the needs of all industries required to move heavy loads under all conditions, safely. The user-friendly P72.10PLUS offers excellent telescopic performance without limiting the speed of work.

The maximum load capacity is 15,800 lbs. The low pivot, the no-flex boom has a lift height up to 31’3”. Top load at full height is 9,000 lbs. Maximum reach of 17’1” easily manages 4,500 lbs.

Power

The P72.10PLUS is powered by a 115HP Perkins engine with Eco Power Drive (EPD). To maximize efficiency, the EPD automatically controls and adjusts engine speed, hydrostatic pump flow rate, and hydrostatic engine displacement according to operating conditions. EPD reduces RPM and ensures a reduction in fuel consumption of up to 18%.

A load sensing hydraulic pump with a flow-sharing distributor supplies the P72.10PLUS with high efficiency, excellent performance, and smooth operation. The hydrostatic transmission, 4WD, 3 steering modes and speed up to 25 mph creates a very nimble machine.

Safety

Merlo’s adaptive stability control system (ASCS) recognizes the machine’s operating parameters in real-time. This includes attachments, load weight, and machine positioning. Depending on the implementation in use, the system can vary the response of the machine and the speed of movementMachine safety also includes an automatic parking brake management system. The machine sets the brake automatically when the engine switches off to avoid unintentional movements.

Every Merlo has a 3” solid ring of steel surrounding the machine. Along with increasing structural strength, the ring of steel eliminates the need for counterweights, making this a very compact telehandler (17’11” x 7’4” x 8’2”). The P72.10PLUS is equipped with frame leveling, boom side-shift, and an inching pedal for safe precision material placement.

Control Center

Designed for the operator, the cab sports automotive-style ergonomics while ensuring excellent protection for the operator. FOPS (Level II) and ROPS certified the 3’3” spacious cockpit and the expansive glass surface -front, back, sides, roof- of the cab ensures unparalleled comfort and full visibility. The reverse shuttle is on the steering column and joystick.

The P70.10PLUS packages together everything needed for optimum job performance. For the operator: comfort, visibility, safety. For the job site: nimble performance, tight turning capabilities, attachment versatility, and overall excellence in performance and reliability.
