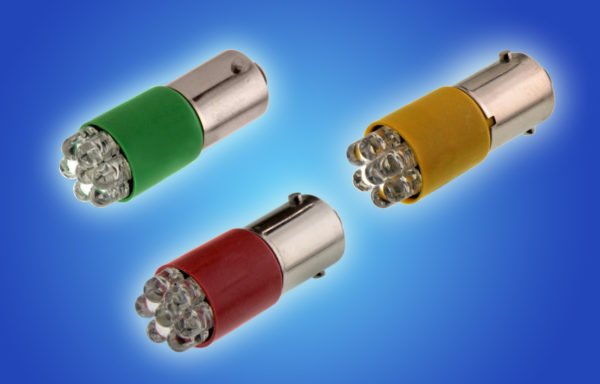

LEDtronics, Inc. announces new additions to its industry-leading line of Miniature Based LED Bulbs. The new LED lamps far surpass the previous generation in brightness, while maintaining their low power consumption and longer light life compared to incandescent lamps.
LEDtronics’ miniature based bulbs are used for critical applications in industries such as defense & aerospace, transportation, and power plants. The BSD-1118/1318/1319 series directly replaces similar Ba9s Bayonet base incandescent lamps within its category. They offer up to 90% energy savings, higher intensity, more even lighting, and reduced heat and relamping costs in critical status indication applications, such as indicator lights for instrumentation, panel-mount pilot lights, accent lighting, automotive indicators, and more.
The solid-state design of these new miniature lamps renders them impervious to electrical and mechanical shock, vibration, frequent switching, and environmental extremes. They have a much longer light duration, with LED lumen maintenance of 70 percent at over 100,000 hours. All units feature Rynite FR530 sleeves and brass bases with nickel-plated brass barrels.
The LED bulbs feature a 30-degree beam angle, with a choice of Ultra Red (657nm), Super Yellow (600nm) or Aqua Green (527nm) emitted colors. The latest LEDtronics series comes in three voltage configurations: 110VAC BSD-1118; 15Vf & 23Vf (requires external current limiting) BSD-1318 with center contact polarity/bipolar DC; and 120VAC BSD-1319 with current-limiting resistor built-in.
They have a wide operating temperature range of -30°C to +50°C. Unlike incandescents, they generate minimal heat, produce virtually no UV or IR radiation, and do not emit RF interference. They boast faster turn-on and reaction time compared to filament lamps, yet provide higher luminous intensity and pure wavelength light for more uniform illumination and better visibility.
Depending on the voltage and LED light color, power consumption ranges from 0.2 to 0.8 watts, offering luminous intensity from 0.40 to 26.24 lumens. The series also has a maximum candela brightness values that range from 640 mcd to 2.09 cd. They can be specified in virtually any combination of colors and operating voltages to fit the customer’s specific configuration and voltage requirements. Other colors and voltages are available for qualified volume orders.
The new series of LEDtronics Ultra Bright Miniature Bayonet Based LED Bulbs comes with an unconditional 3-year U.S. factory warranty, and they are available through LEDtronics distributors; quantity discounts are available for qualified volume orders.
