PR_BS858C Panel Indicators

LEDtronics new Bolt-on LED Panel Indicators are a bright choice for Industrial Control Panels

Continuing to expand its offerings of LED indicators for industrial control panels, LEDtronics introduces new additions to its family of bolt-on panel indicators. It features various voltage and color options.

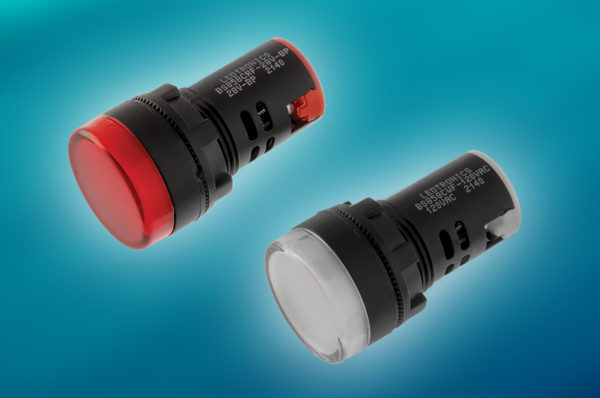

The new BS858C Series of direct incandescent-replacement LED lights are sunlight visible and boast a wide viewing angle, making them an excellent choice for control panels in such applications as power plants, automation equipment, product floors, construction equipment, machinery, and medical equipment. They are also ideal for pilot lights, signal lights, and any similar control panels with a thickness no greater than 0.335 inch (8.51mm) with a recommended mounting hole of 0.899in (22mm).

The LED lamps have bipolar terminals that make them easily installed into 7/8″ (22mm) diameter mounting holes with side-insert lead wires and Phillips screws. They come in a choice of colors and voltages: 240VAC Super Red and 120VAC Natural White, and a lineup of 28VAC/DC lights in Super Red, Super Orange, Aqua Green, and Natural White. They all feature a flat, polycarbonate tinted lens with a separate white internal diffuser in a black PA66 nylon housing.

Offering energy savings, negligible heat generation and a wide operating temperature range of ~-13 to ~+176 degrees Fahrenheit (-25°C to +80°C), the BS858C Series lamps use only 1 watt or much less and a wide beam angle of around 105°~115°. The 28-volt lamps provide a luminous output ranging from 7.30 to 12.53 lumens, 0.04 to 3.23 candelas at a rated current ranging from 0.011A to 0.021mA, and input power of 0.3 to 0.6 watts. BS858CWF-120VAC offers 10.84 lm, 4.67 cd at 0.011A, using 1.1 watts, while BS858CRF-240VAC offers 2.21 lm, 1.02 cd at 0.007A, using 1 watt.

With over 70% lumen maintenance of colored LEDs and an average life span of 100,000-plus hours (11 years)—more than 30 times longer than the equivalent incandescent lamp—the BS858C Series LED lamps to operate reliably year after year. Savings from reduced maintenance costs and downtime quickly return the capital investment expenditure! Additionally, unlike their incandescent counterparts, LED lamps to generate only minimal heat and emit neither UV/IR rays nor RF interference.

The latest series of LEDtronics Bolt-on Panel Indicators is available through LEDtronics distributors, and quantity discounts are available. Other voltages and color options are available for large quantities and qualified applications.
