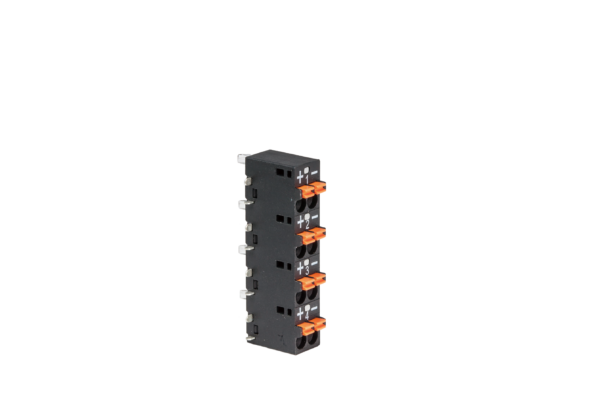

Dinkle 0171 Light Guiding TB 0171-11XX

Dinkle Light Guiding Terminal Blocks improve operations and maintenance

Dinkle 0171-series push-in-design terminal blocks with built-in LED light guides to provide quick visual confirmation of active connections

Dinkle International announces the availability of its 0171 series of push-in-design (PID) terminal blocks, providing high-reliability connections and a clear indication of active circuits to assist with operations, maintenance, and troubleshooting.

Dependable electrical wire terminations are necessary for all types of commercial and industrial equipment and machinery. The 0171-series incorporates PID technology, improving upon traditional screw terminals in terms of performance, ease of use, and space efficiency. The consistent clamping tension of PID terminal blocks resists vibration-related connection failures far better than screw terminals, and wires are easily pushed in, saving up to 75% of the wiring time compared with screw terminals.

Available in various form factors and sizes, the 0171-series terminal block housings are ultra-thin. A 10mm housing accommodates two rows of 1.5mm2 wire entry and a 12mm housing accommodates two rows of 2.5mm2 wire entry. Customization of housing colors, pushbuttons, and label printing are available to tailor the product to each application while providing clear circuit functionality identification.

Integral light pipes route the illumination from underlying device LEDs, ensuring clear visibility for users. This indication is useful to confirm normal operation and support troubleshooting efforts.

The 0171-series terminal blocks are rated at 300V in various ampacities depending on the model. They carry approvals from UL, cUL, and CE, and the material used for manufacturing is compliant with RoHS.
